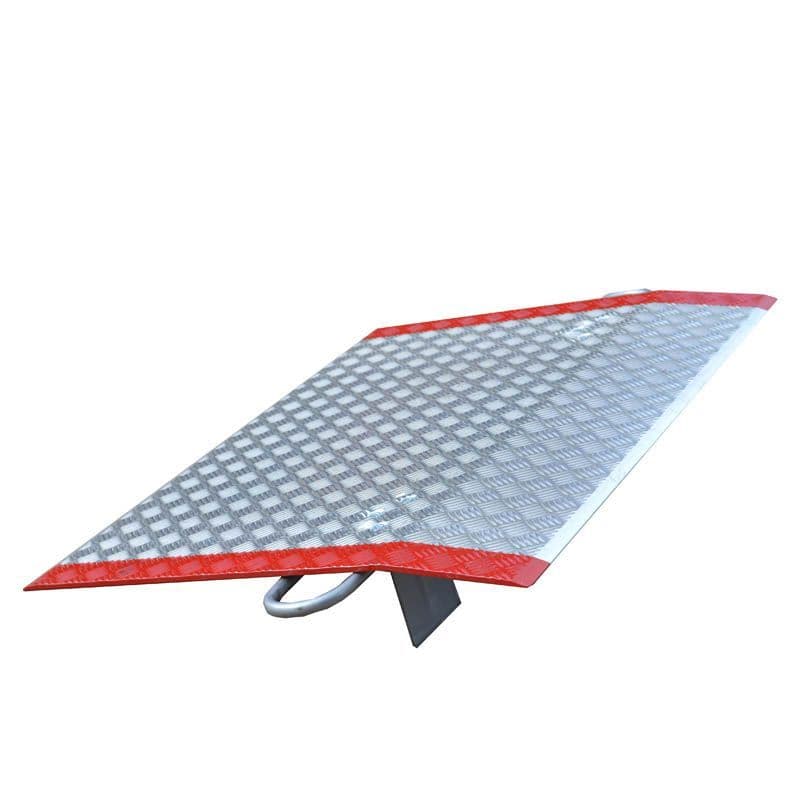

Dockplates

Dockplates
  • For loading & unloading vehicles from a raised area

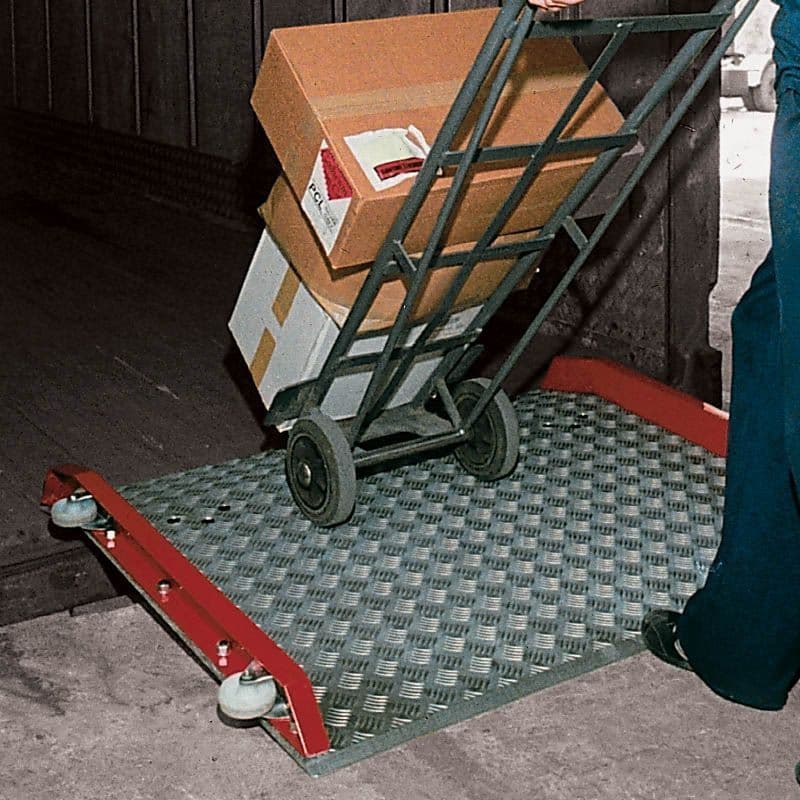

  • Ideal for use with pallet trucks, sack trucks, roll cages etc.
  • Made from high tensile aluminium
  • Designed with built in anti-slip finish
  • Loop type handles for moving dockplates
  • Pair of locking legs for stability
  • Optional fork truck handles for lifting with fork truck

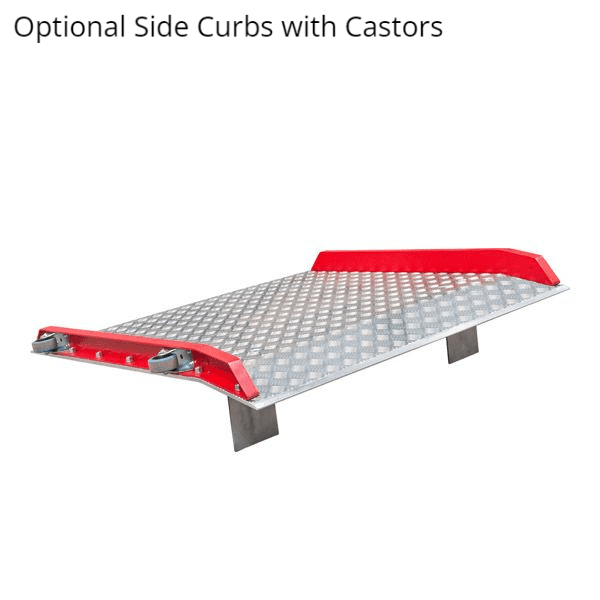

  • Optional side curbs with castors for easy movement
Specifications
Overall Size
(W x L) mm
Height Differential Load Capacity
(kg)
Model Price
Max. Poss. max. Rec.
915 x 1220 178 125 770 3648 £955.64
1220 x 610 76 50 2040 4824 £762.95
1220 x 915 127 90 1360 4836 £954.53
1220 x 915 127 90 2450 H4836* £1147.23
1220 x 1220  178 125 1020 4848* £1141.63
1220 x 1220  178 125 1810 H4848* £1406.00
1220 x 1525 228 160 810 4860* £1333.21
1525 x 1220 178 125 1270 6048* £1332.00
Fork Truck Lifting Handles (pair) FTH-1 £217.35
Side Curbs with Castors (pair) SCC-2 £347.31
* Fork truck lifting handles recommended for these plates

(G)

product review overlay image

Customer reviews

No reviews left yet
Write A Review

No reviews have been left for this product, be the first to leave a review
MPN 3648
Brand Thorworld
