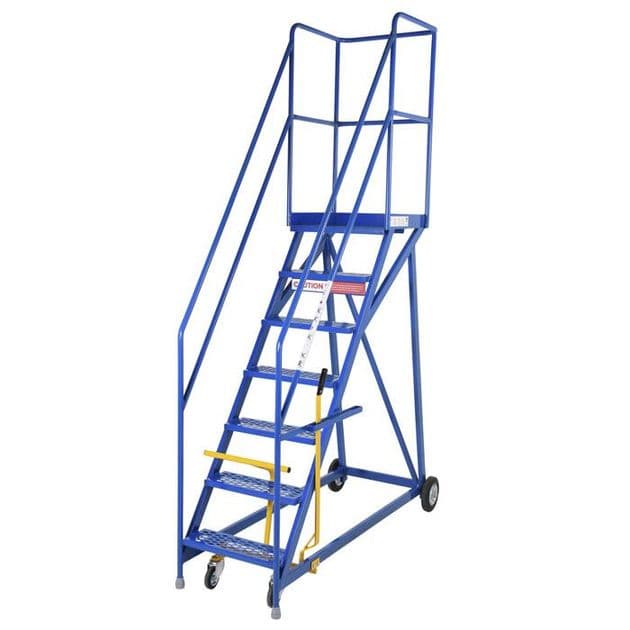

Heavy Duty Mobile Steps with Narrow Base, Rubber Treads
Heavy Duty Mobile Steps with Narrow Base, Rubber Treads

Heavy Duty Mobile Steps with Narrow Base, Rubber Treads

Heavy Duty Mobile Steps with Narrow Base, Rubber Treads

Heavy Duty Mobile Steps with Narrow Base, Rubber Treads

  • 150kg Load Capacity
  • TREAD MATERIAL: Ribbed Rubber
  • PLATFORM SIZE: 540 x 500m
  • TREAD WIDTH: 490mm
  • Over load tested to 200kg
  • Welded heavy gauge steel box section and bar
  • Fitted with hand lock lever anchorage
  • Feet fitted with protective grey non-marking rubber feet
  • Safety warning bar fitted to protrude in front of steps, linked to hand lock lever mechanism, to deter users from climbing steps when still in ‘mobile’ mode
  • Outboard wheels mounted on straight base frame for optimum space saving requirements
Specifications:
Treads Platform Height Overall (HxWxD) mm Weight Model
3 690 mm 1690 x 700 x 930 51 kg S960
4 920mm 1920 x 700 x 1140 59 kg S961
5 1150 mm 2150 x 700 x 1240 69 kg S962
6 1380 mm 2380 x 700 x 1410 88 kg S963
7 1610 mm 2610 x 700 x 1570 97 kg S964
8 1840 mm 2840 x 700 x 1740 107 kg S965
9 2070 mm 3070 x 700 x 1900 117 kg S966
10* 2300 mm 3300 x 900 x 2060 131 kg S967
11 2530 mm 3530 x 900 x 2230 140 kg S968
12 2760 mm 3760 x 900 x 2400 151 kg S969
13 2990 mm 3990 x 1230 x 2560 163 kg S970
14 3220 mm 4220 x 1230 x 2730 175 kg S971
15 3450 mm 4450 x 1230 x 2890 187 kg S972

NOTE: *10 treads and above models are supplied in 2 halves for transport purposes.

Please call us to check delivery time.
