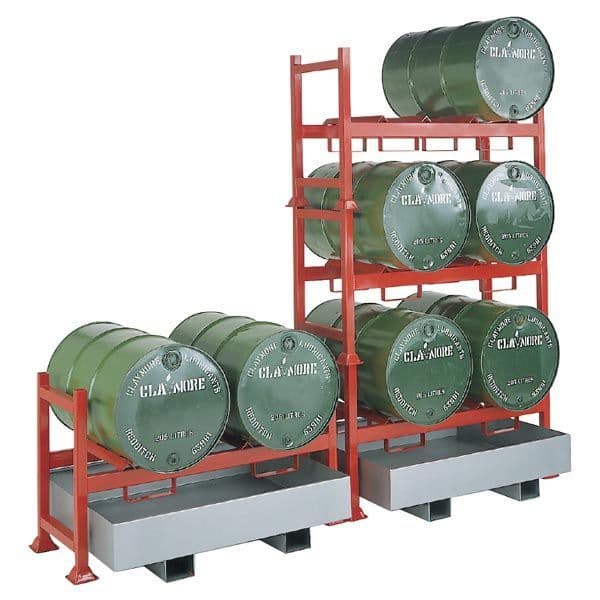

Stacking Drum Pallet Racking System

DetailsReviews Specifications

Product includes 1 Pallet Unit and 1 Sump Unit

Expandable storage system for 200/220 litre steel drums
Pallet Unit: Holds 2 drums
Strong welded steel construction stackable pallet
Pallet feet 127mm square
Maximum stacking 3 units high
Drum Rotation option
Red epoxy finish

**Specifications:**
Overall Size (H x W x D )	890 x 1460 x 615 mm
Fork Pocket (W x H)	240 x 70 mm
Max Width Over Forks	920mm
Distance Between Pockets	430mm
.
Component	Weight	Ref	Price
Pallet Unit	50kg	DS100	£447.67
Sump Unit	70kg	DS2	£407.43
Optional Accessories
Drum Rotation Set (per drum)	4kg	DS101
Drum Retaining Bars (each)	6kg	DS102
Dispenser Stand	6kg	DS103

250 LITRE SECONDARY CONTAINMENT
- Sump Unit: Capacity 250 litres.
- Formed from 3mm sheet steel, fully welded seams.
- Overall Size (H x W x D): 300 x 1250 x 1000mm
- Ground Clearance 100mm. Finish: Grey epoxy.

- Drum Rotation Set: Fitted with 4x nylon rollers. Drops onto pallet unit. 1 set per drum position.
- Dispenser Stand: Hooks onto pallet. Overall size (H x W x D): 330 x 340 x 290mm.
- Drum Retaining Bars: For added stability when moving pallets. Overall size (H x W x D): 1420 x 170 x 40mm.

70-80 working days delivery time

Customer reviews

No reviews left yet

Write A Review

No reviews have been left for this product, be the first to leave a review

MPN	DS100-DS2
Brand	LiftMate
