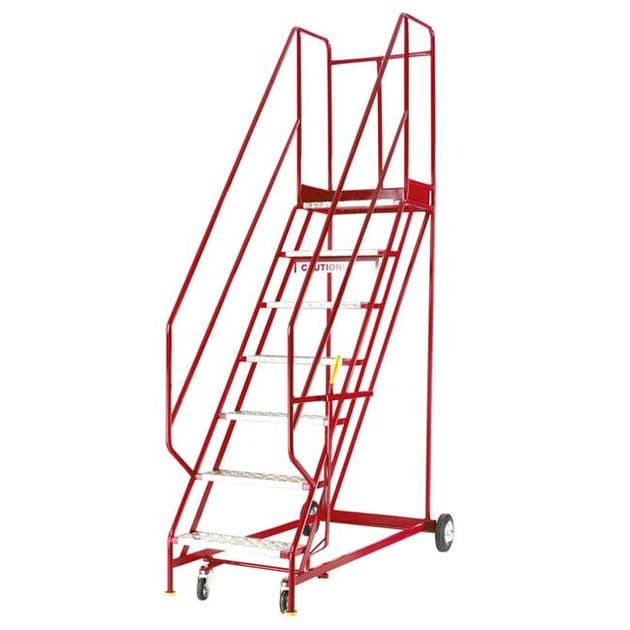

Steptek Punched Steel Tread Steps
Steptek Punched Steel Steps
- Punched Steel Treads
- 150kg Load Capacity
- PLATFORM SIZE: 560 x 400mm
- TREAD WIDTH: 560mm
- Welded steel tube and bar construction
- Handlock anchorage; when locked the front feet rest firmly on the floor
- Feet fitted with protective plastic floor pads
- * Only 13 treads and above models have extended outboard axle with support rail
- Outboard axle mounted rear wheels gives extra stability
- Red epoxy finish
| Treads | Platform Height | Overall (HxWxD) mm | Weight | Model |
| 3 | 750 mm | 1710 x 780 x 860 | 46 kg | S314 |
| 4 | 1000 mm | 1960 x 780 x 1040 | 48 kg | S315 |
| 5 | 1250 mm | 2210 x 850 x 1220 | 51 kg | S140 |
| 6 | 1500 mm | 2460 x 850 x 1400 | 56 kg | S141 |
| 7 | 1750 mm | 2710 x 850 x 1580 | 61 kg | S142 |
| 8 | 2000 mm | 2960 x 850 x 1760 | 68 kg | S143 |
| 9 | 2250 mm | 3210 x 850 x 1940 | 73 kg | S144 |
| 10** | 2500 mm | 3460 x 1000 x 2200 | 85 kg | S145 |
| 11 | 2750 mm | 3710 x 1000 x 2380 | 94 kg | S146 |
| 12 | 3000 mm | 3960 x 1000 x 2560 | 106 kg | S147 |
| 13* | 3250 mm | 4210 x 1250 x 2740 | 112 kg | S148 |
| 14 | 3500 mm | 4460 x 1250 x 2920 | 120 kg | S149 |
| 15 | 3750 mm | 4710 x 1350 x 3200 | 158 kg | S316 |
| 16 | 4000 mm | 4960 x 1450 x 3280 | 167 kg | S317 |
NOTE: **10 treads and above models are supplied in 2 halves for transport purposes.
Please call us to check delivery time.
